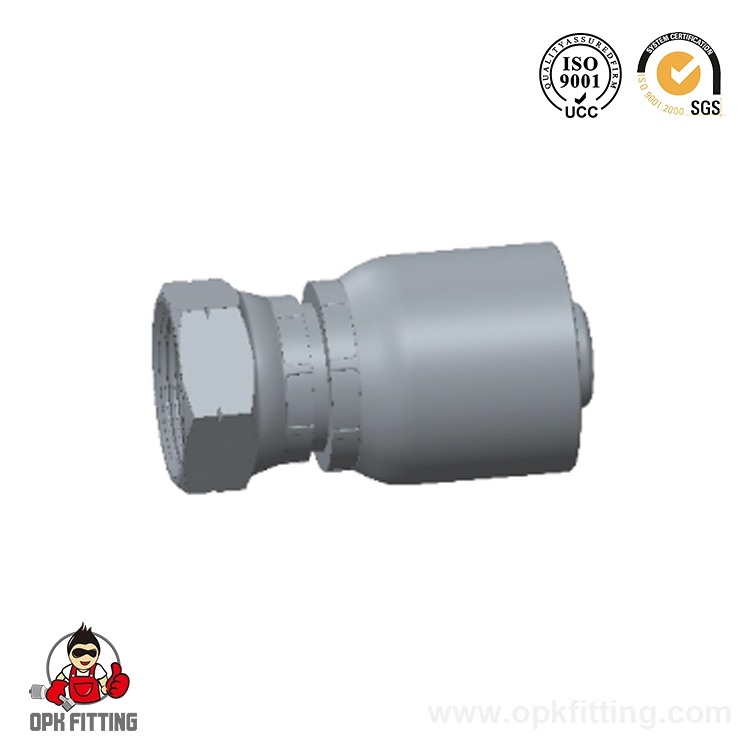

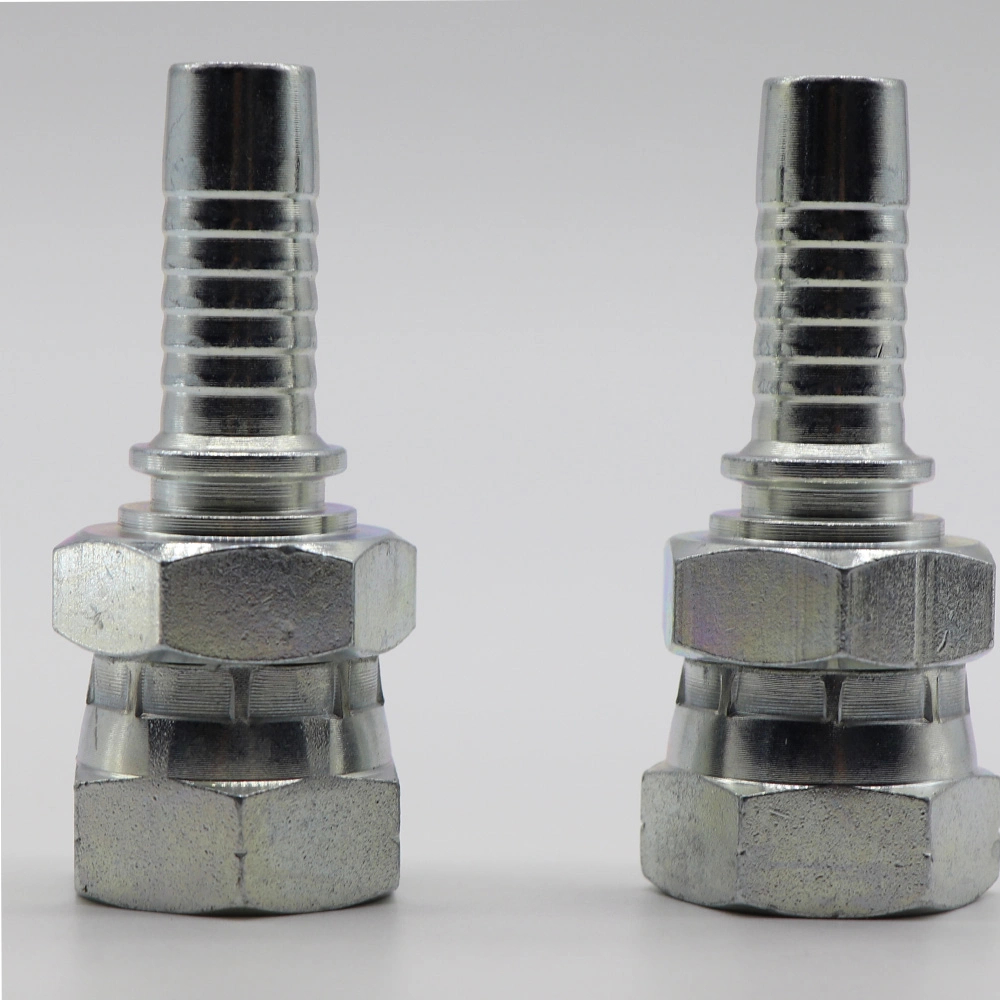

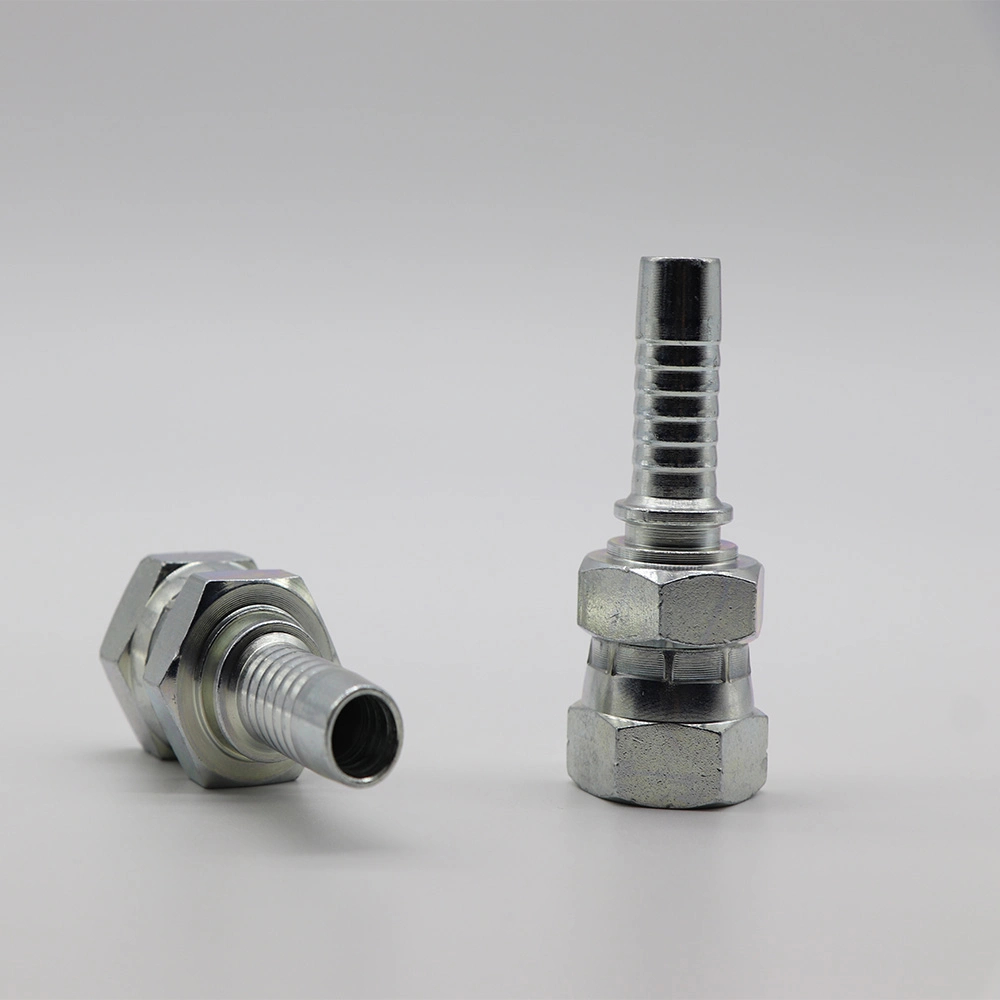

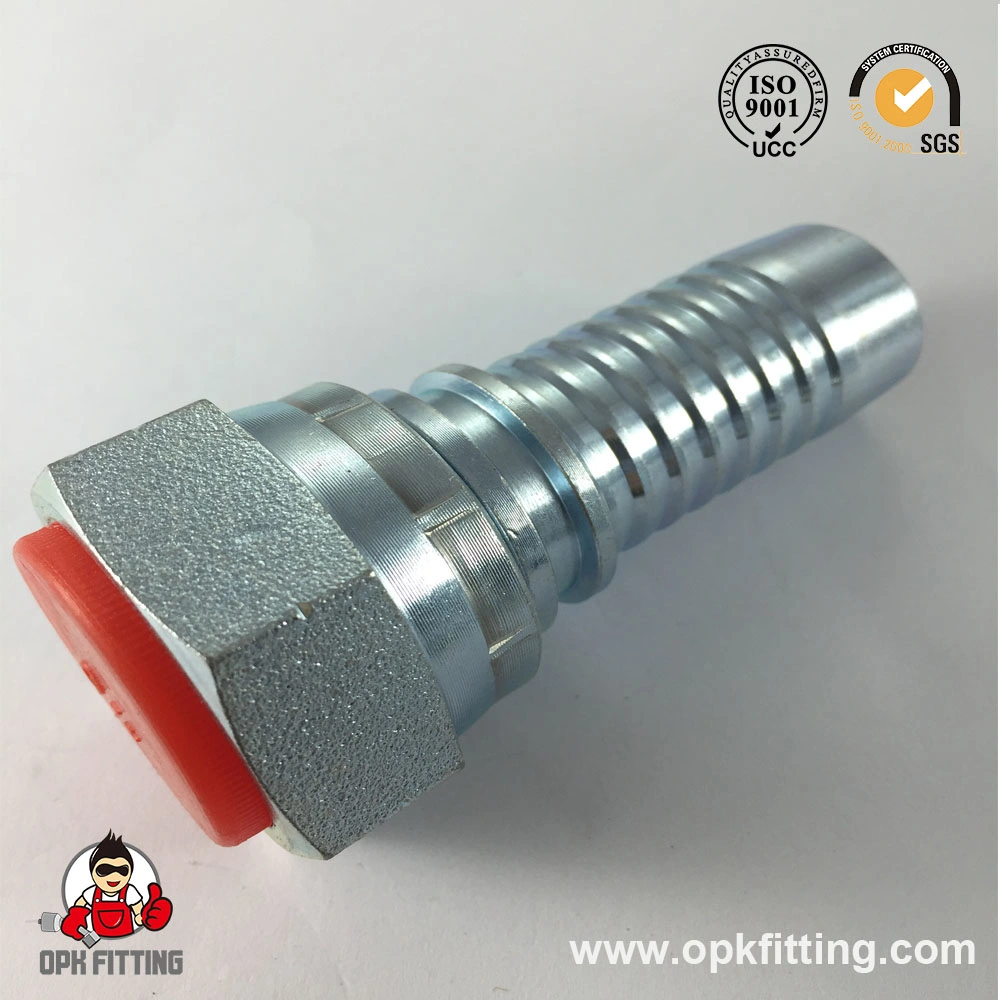

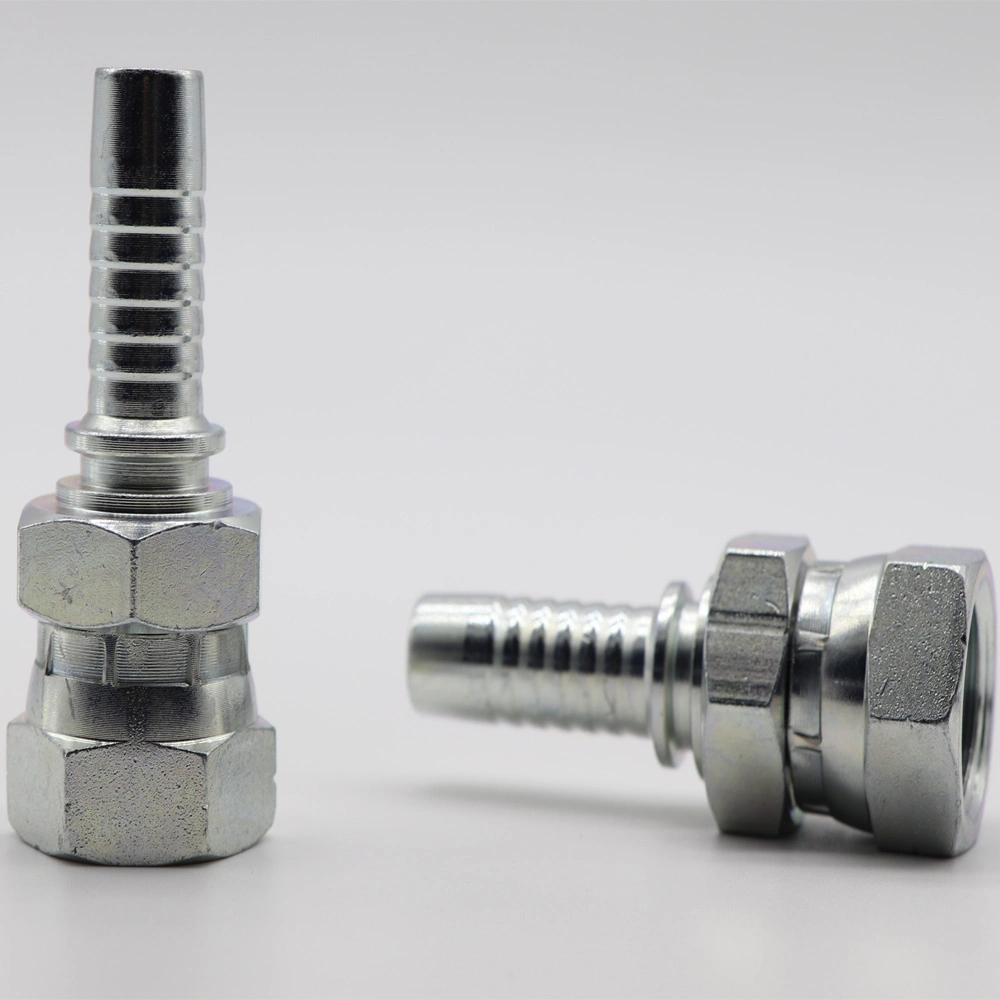

22611 BSP Female 60° Cone

Name: 22611 BSP Female 60° Cone
Rating: 5 (99 reviews)

Description Of Products:
1) Material: C45 /C20 Carbon steel, Stainless steel
2) Finish: yellow Zinc plated, White Zinc Plated
3) Standards: PARKER, EATON
4) Certification: ISO9001

Get A Quote

PRAV：22641 45° BSP Female 60° Cone
BERIKUTNYA：22691 90° BSP Female 60° Cone

Specification
Contact Us

Standard:	DIN
Material:	Medium Carbon Steel
Connection:	Female
Surface Treatment:	Galvanized Sheet
Head Type:	Round
Manufacturer:	Factory

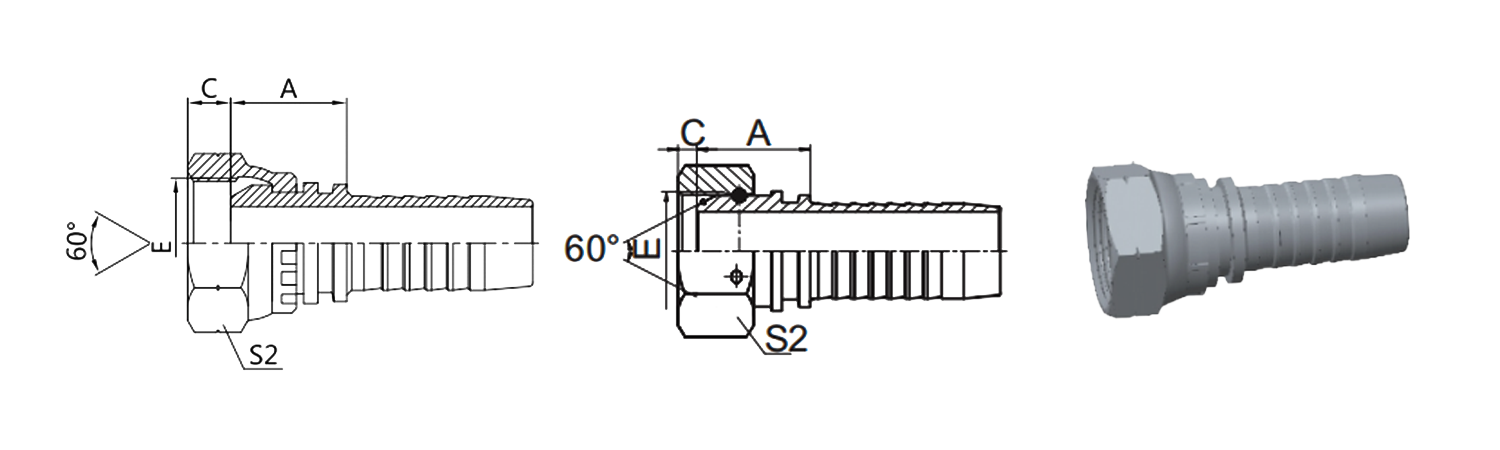

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S2
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S2
22611-02-03	G1/8"X28	5	03	15	5.5	14
22611-02-04	G1/8"X28	6	04	15.5	5.5	14
22611-04-03	G1/4"X19	5	03	17.5	5.5	19
22611-04-04	G1/4"X19	6	04	17.5	5.5	19
22611-04-05	G1/4"X19	8	05	18	5.5	19
22611-04-06	G1/4"X19	10	06	17.5	5.5	19
22611-06-04	G3/8"X19	6	04	19	6.3	22
22611-06-05	G3/8"X19	8	05	19	6.3	22
22611-06-06	G3/8"X19	10	06	19	6.3	22
22611-06-08	G3/8"X19	12	08	20	6.3	22
22611-08-06T	G1/2"X14	10	06	18.5	7.5	27
22611-08-08	G1/2"X14	12	08	21.5	7.5	27
22611-08-10	G1/2"X14	16	10	22.5	7.5	27
22611-10-08	G5/8"X14	12	08	22.5	9.5	30
22611-10-10	G5/8"X14	16	10	23	9.5	30
22611-12-08T	G3/4"X14	12	08	20	10.9	32
22611-12-10	G3/4"X14	16	10	23.5	10.9	32
22611-12-12	G3/4"X14	20	12	24	10.9	32
22611-16-12T	G1"X11	20	12	23	11.7	41
22611-16-14	G1"X11	22	14	26	11.7	41
22611-16-16	G1"X11	25	16	27	11.7	41
22611-20-16T	G1.1/4"X11	25	16	27	11	50
22611-20-20	G1.1/4"X11	32	20	30	11	50
22611-20-20W	G1.1/4"X11	32	20	30.5	11	50
22611-24-20T	G1.1/2"X11	32	20	29.5	13	55
22611-24-24	G1.1/2"X11	40	24	32	13	55
22611-24-24W	G1.1/2"X11	40	24	32	13	55
22611-32-24T	G2"X11	40	24	30	16	70
22611-32-32	G2"X11	50	32	34	16	70
22611-32-32W	G2"X11	50	32	31	16	70
Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 22612-xx-xx.

About OPK Fitting

OPK FITTING Hydraulic Equipment Factory is a specialized domestic factory with hydraulic pipes and adaptors production experience. Our managing scope relates to various fields such as hydraulic systems etc.; Including all kinds of materials with different pressure levels, flexible hydraulic hoses with various size criteria, hose fitting, adaptor, etc. They have been respectively applied in the hydraulic and fluid conveyance systems of industries, such as machinery, metallurgy petroleum, construction, ships, space-flight, agriculture, pharmaceutical, food, and so forth.
Ningbo OPK Fitting Co., Ltd. is a China professional 22611 BSP Female 60° Cone manufacturers and ODM & OEM 22611 BSP Female 60° Cone factory .We can provide custom-made stainless steel hydraulic fittings, hydraulic hose crimp fittings, and hydraulic quick couplings.

Over 10 years of experience.

A team of skilled design professionals and talent.

Excellent product quality and thoughtful customer service.

Our 10 years of customisation experience has created the OPK Fitting brand value.
